MASTER2

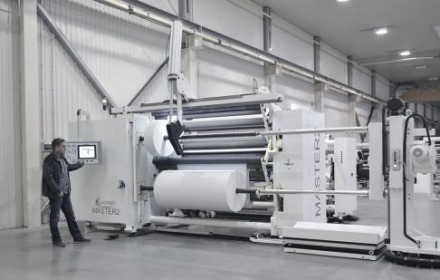

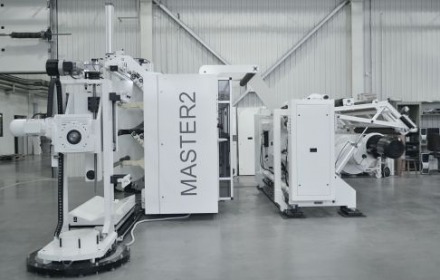

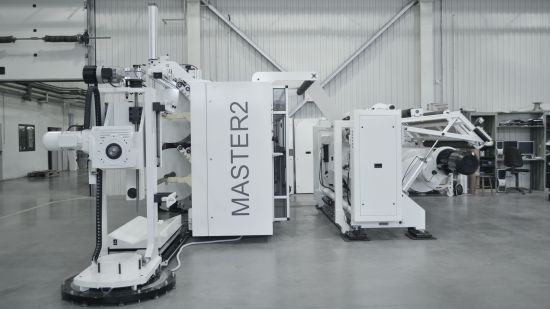

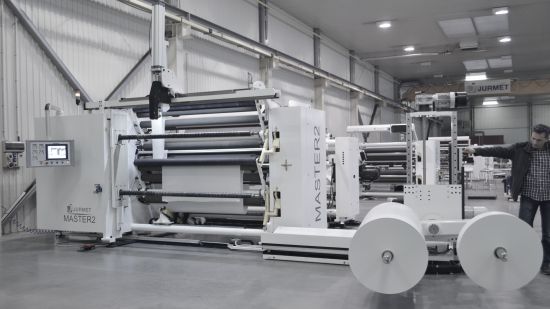

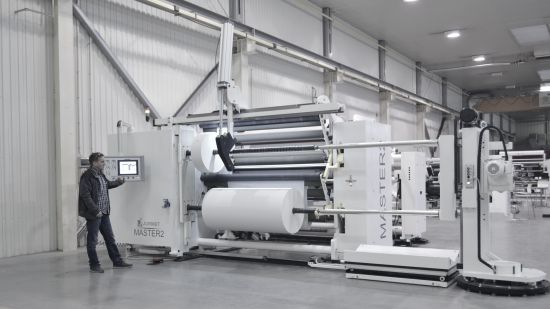

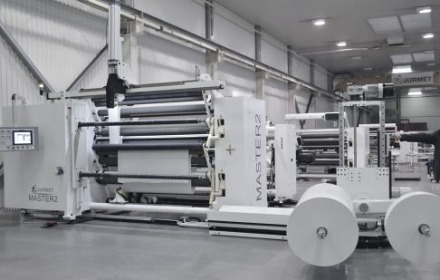

MASTER2 - duplex slitter with separate unwinder
MASTER2 slitter keeps the constant slitting parameters independently of job conditions. A supported unwind with a motor placed on the unwind station, the main drive motor and rewind motors, as well as precise web tension control keep slitting process of various materials under control. Moreover, top run of material protects the materials against dust and other impurities. The constancy of MASTER2 job is confirmed for converting standard packaging materials with 700m/min.
Possibility of the precise web tension control, special geometry of the slitter and solid mechanical and electronic parts result in constant slit independently of mechanical wore out of the slitter. Additionally, hermetic dust free friction chucks reduce considerably the maintenance time.
TECHNICAL DATA
|
Width of material
|
1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
|
|
Unwind diameter
|
1100/1300/1500mm (43.3"/59.1")
|
|
Rewind diameter
|
610/1000mm (24"/39.4")
|
|
Max. mechanical speed
|
700m/min. (2297 ft/min.)
|
|
Weight of parent roll
|
max. 2500 kg (5512 lbs)
|
|
Min. slitting width
|
25mm/1" (50mm/2" as standard)
|
|
Core ID
|
70mm, 3”, 120mm, 150mm, 6”
|
|
Converted material
|
printed / unprinted foil (PE,PP,PA,PET and other),metalised foil, laminated, shrink film, label stock film, paratransmission film, aluminium, paper.
|
|
Application
|
packaging for food industry, flexo printing houses, health care materials and pharma materials
|
